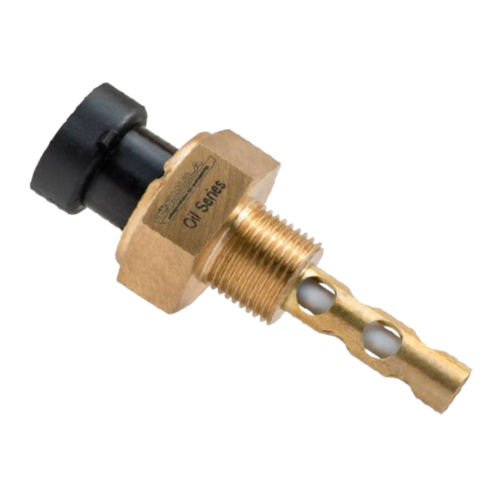

S276 Oil Level Switch – Capacitance Type
Oil Level Switch providing source output. Fitted with integrated Delphi Metri-pack 150 series 4 pin connector.
The S276 is an active device designed to give an alarm signal if liquid falls below, or rises above, a preset level. It can be specified with a delay to eliminate false alarms due to turbulence.
Containing a factory programmable microprocessor, the switch provides source voltage output. Its small footprint with limited intrusion into the tank means a reduced risk of damage and a wide range of customer specifiable options make it suitable for most applications.
For high accuracy, the S276 is ideally mounted horizontally at the point where an alarm or control signal is required. However, the switch can be mounted vertically – contact Fozmula with your application requirements.
Mineral oils, typically used in engines or hydraulic actuators, compatible with brass, PTFE and FVMQ.
Supply voltage: 9-36 VDC.
Supply current: 7 mA + source output.
Max. load current: 20 mA (source).
Alarm delay time: 0 to 25 s rising or falling (factory set).
Connection: 4 way Delphi Packard Metri-Pack 150 series connector.
Power up delay: 0 to 10 s (factory set).
Power up state: ‘In Liquid’ or ‘In Air’ (factory set).
Output type: Source (supply voltage less typically 2.7 V @ 10 mA.
Output pin: Pin D.
Output state: Source On / Off in liquid (factory set).
See diagram below
C/K1: Packard Metri-Pack 150 series mating connector kit to suit harness wire cross sectional area of 0.8 to 1.0 mm2 and sleeve Ø1.60 to 2.15 mm.
Terminals: Brass, Tin Plated.
Connector: PA66 30% Glass Filled Nylon.
Ingress: IP67 (with mating connector fitted).
Max. pressure: 5.0 Bar (72 psi)
Temp. range: -40 °C to +125 °C
Weight: 70 g typical (dependent on thread size)
Vibration (15.3 Grms): 3 orthogonal planes for 3 hours per plane
Testing performed in accordance with BSEN 60068-2-64:1993
Drop: 1 m to concrete surface.
