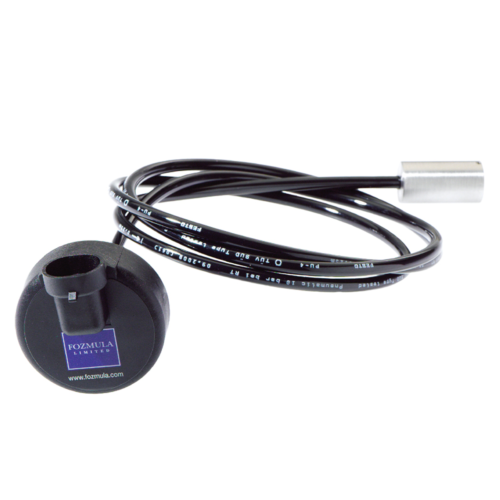

T/LL200 - Hydrostatic Liquid Level Sensor
The T/LL200 series is designed for use in vented tanks requiring continuous level measurement of their contents and provides a factory set linear* voltage or 4-20mA output suitable for connecting into a PLC or process related applications. (The T/LL200 is not a loop powered sensor).
The device has no moving parts and utilizes hydrostatic technology incorporating a pressure transducer to measure the height of liquid. The flexible tube allows the sensor to be fitted easily and to tanks where a swing arm device is not practical.
*Contact Rochester Sensors UK for non-linear applications.
Documents
Data Sheet
Installation Instructions
Liquid Types
Liquids compatible with the construction materials; typically diesel, kerosene, petrol, water.Dimensions
Liquids compatible with the construction materials; typically diesel, kerosene, petrol, water.Dimensions
- Liquid Depth Diesel: Min. 400 mm, Max. 4000 mm
- Liquid Depth Water: Min. 400 mm, Max. 3500 mm
- Threads: ½” BSPT, 1” BSPT, ½” NPT
- Flange Option: Rochester Sensors F/T1 SAE 5-Hole Adaptor
Electrical
- Supply Voltage: 9-32 VDC (Voltage output), 18-32 VDC (Current output)
- Supply Current: 30 mA
- Supply Protection: Over-voltage 80 VDC for 2 minutes. Reverse polarity.
- Signal Output:
- Current Range. 4-20 mA or 20 -4 mA. Max. 250 Ω load.
- Voltage source range. 0-5 V or 5-0 V. Max. 10 mA.
- Alarm Output: Voltage source range. 0-5 V or 5-0 V. Max. 10 mA. Switch to ground. Max 100 mA. Default setting is 12.5% of full level. Minimum 50 mm from sensor end.
- Connections: 4 Way Delphi Packard Metri-Pack 150 Series.
- Mating Connector: Fozmula C/K1 (Delphi Packard Metri-Pack 150) To fit 0.8-1.0 mm2 conductor, Ø1.6-2.15 mm sleeve.
- Performance Accuracy: ±1.6% for 2000 mm fluid depth @ 25 °C
