T/LL25X Series Liquid Level Sensor
The T/LL415 Liquid Level Sensor is an advanced capacitive level sensor that continuously monitors liquid level and temperature and broadcasts this via a CAN J1939 output protocol
The T/LL250 series is designed for use in vented tanks requiring continuous level measurement of their contents and provides a factory set linear voltage or 4-20 mA output suitable for connecting into a PLC or process related applications. (The T/LL250 is not a loop powered sensor).
The device has no moving parts and utilises hydrostatic technology incorporating a pressure transducer to measure the height of liquid. The flexible tube allows the sensor to be fitted easily and to tanks where a
swing arm device is not practical.
Available in multiple lengths upto 10m and re-calibratable by end user. units supplied will be calibrated for diesel.
Documents
Data Sheet
Liquid Types
Liquids compatible with the construction materials typically; diesel, kerosene, petrol, water.

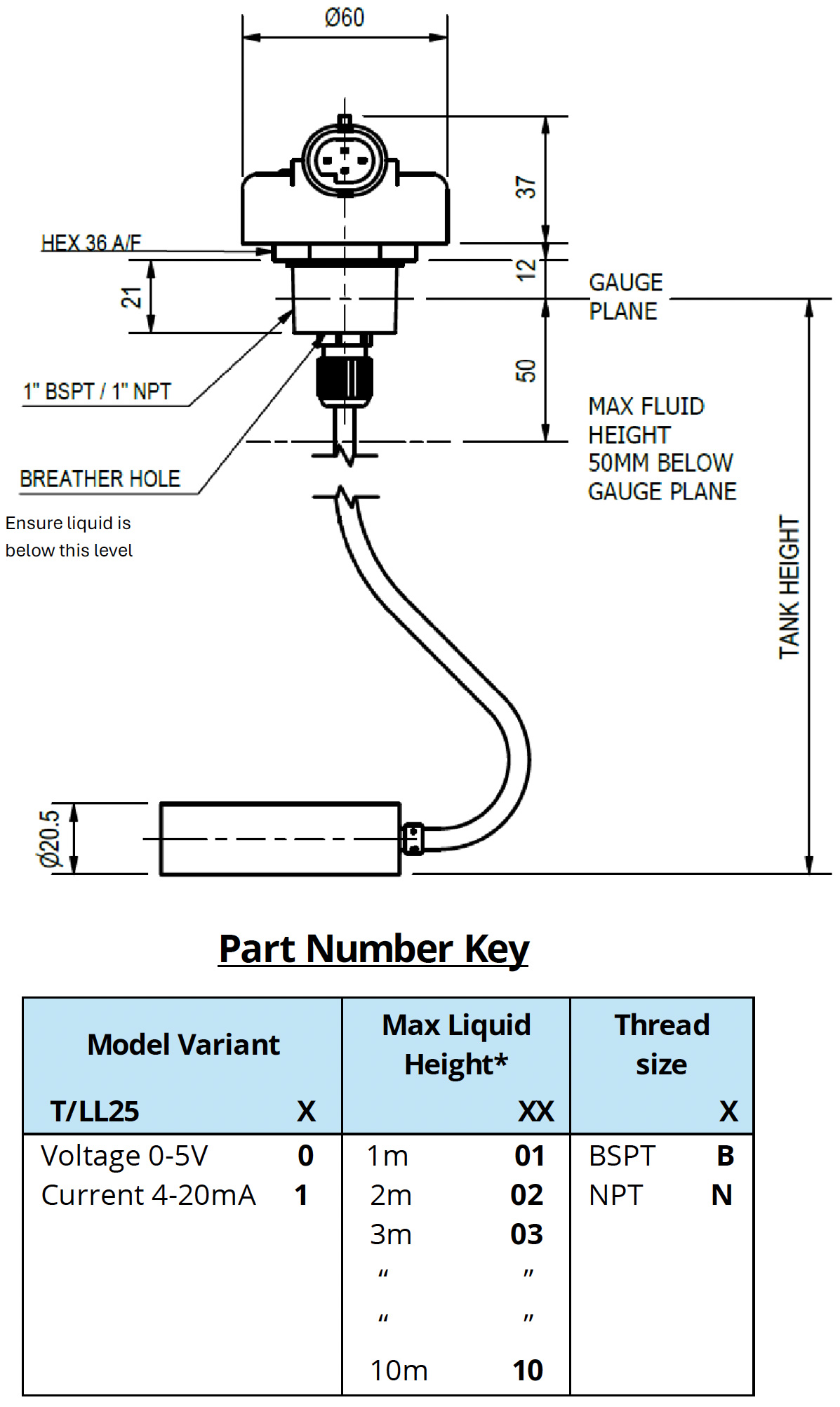

Dimensions
Length: Min. 400 mm, Max. 10,000 mm
Liquid Depth Water: Min. 400 mm, Max. 8,400 mm
Threads: 1” BSPT, 1″ NPT
Electrical
Supply Voltage: 9-32 VDC (Voltage output), 18-32 VDC (Current output)
Supply Current: 30 mA
Supply Protection: Output: Over-voltage 80 VDC for 2 minutes. Reverse polarity.
Signal Output: Current Range. 4-20 mA. Max. 250 Ω load.
Voltage source range. 0-5 V. Max. 10 ma.
Alarm Output: Switch to ground. Max 100 mA. 12.5% of full level.
Voltage T/LL250 version only
(TLL250 only)
Connections: 4 Way Delphi Packard Metri-Pack 150 Series.
Mating Connector: Rochester Sensors C/K1 (Delphi Packard Metri-Pack 150)To fit 0.8-1.0 mm2 conductor, Ø1.6-2.15 mm sleeve.
Environmental Ratings
Sealing: IP67 with mating connector above tank surface(excluding tank venting hole).
Operating Temp: -20 ºC to +85 ºC
Vibration: 4.3 Grms BS EN 60068-2-64:2008
Weight: 300g (1m long sensor)

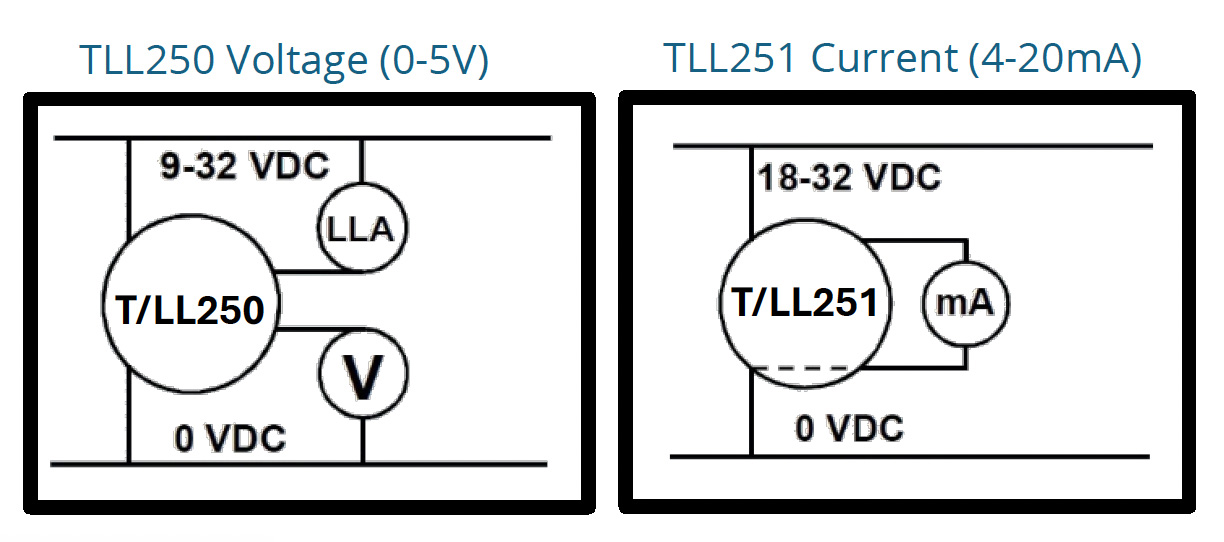

Wiring Schematic
